MRM-H 1270 / HYDRAULIC ASSYMETRICAL INITIAL PINCH 3 ROLLS PLATE BENDING MACHINE

Home / Products / MRM-H Models / MRM-H 1270 / HYDRAULIC ASSYMETRICAL INITIAL PINCH 3 ROLLS PLATE BENDING MACHINE

ISITAN-OPSIYONEL-TEL-KANAL

ISITAN-MRM-H1270-180

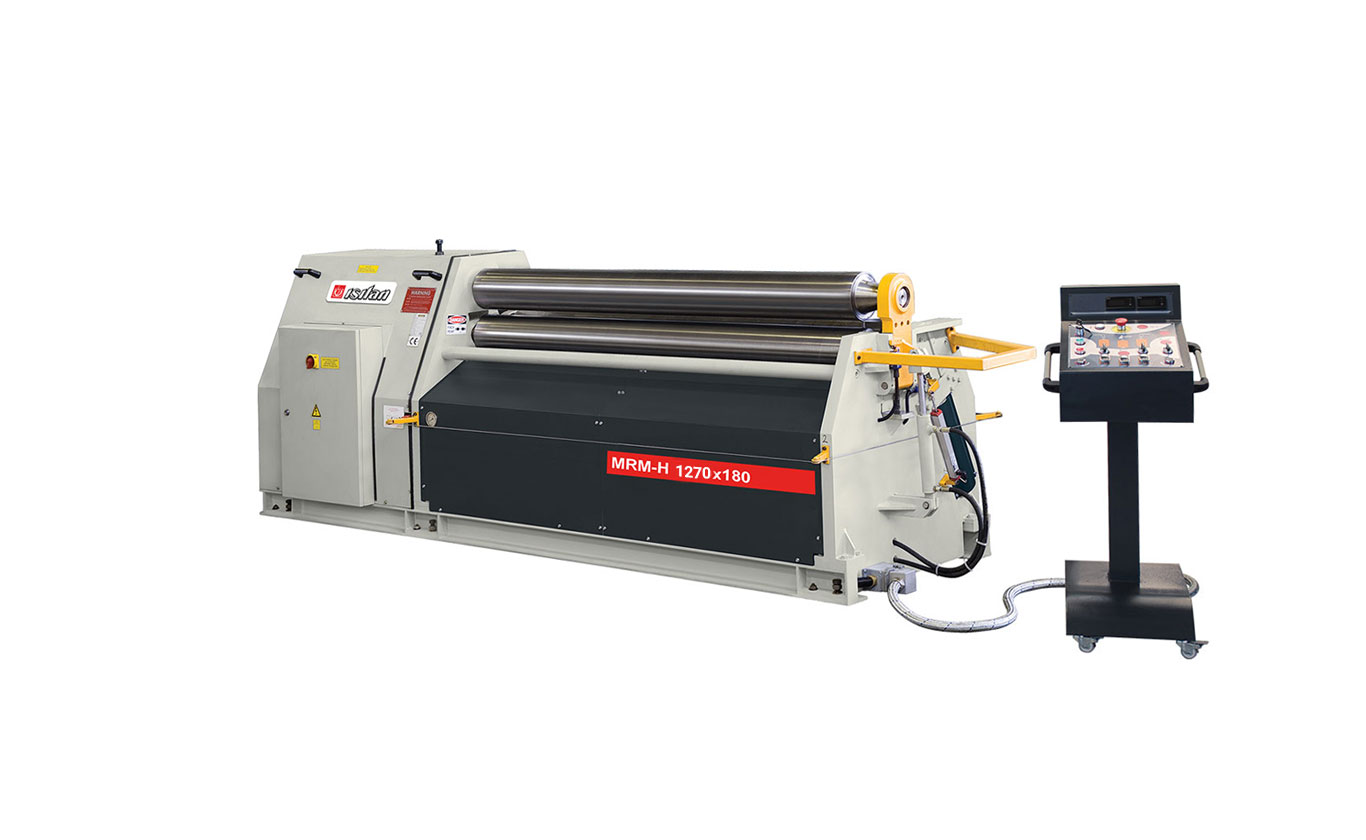

Sample photo

MRM-H 1270 / HYDRAULIC ASSYMETRICAL INITIAL PINCH 3 ROLLS PLATE BENDING MACHINE

StandartdFeatures
Optional Features
Technical Table
Product Video
Product Catalog

Standard Features

Steel Welded main Frames
Hydraulic Dropend
Mobile Control Panel
Motor Powered centralised Rolls
Hydraulic movement of Back Roll and bottom roll
Main motor with Brake System
Conical Bending, PreBending available
Planetary Gearbox two rolls driven
Back Roll with Ball Bearings for thin sheet Works
Built according to EC Safety Directives and has CE Mark
SAE 1050 (CK45) certificated forget steel rolls with high tensile strength
Hardened rolls
2 pcs. Digital Read-Outs
User’s manual

Optional Features

Overhead Crane for large diameters
Hydraulic Lateral Side Supports for large diameters
Ground and polished rolls

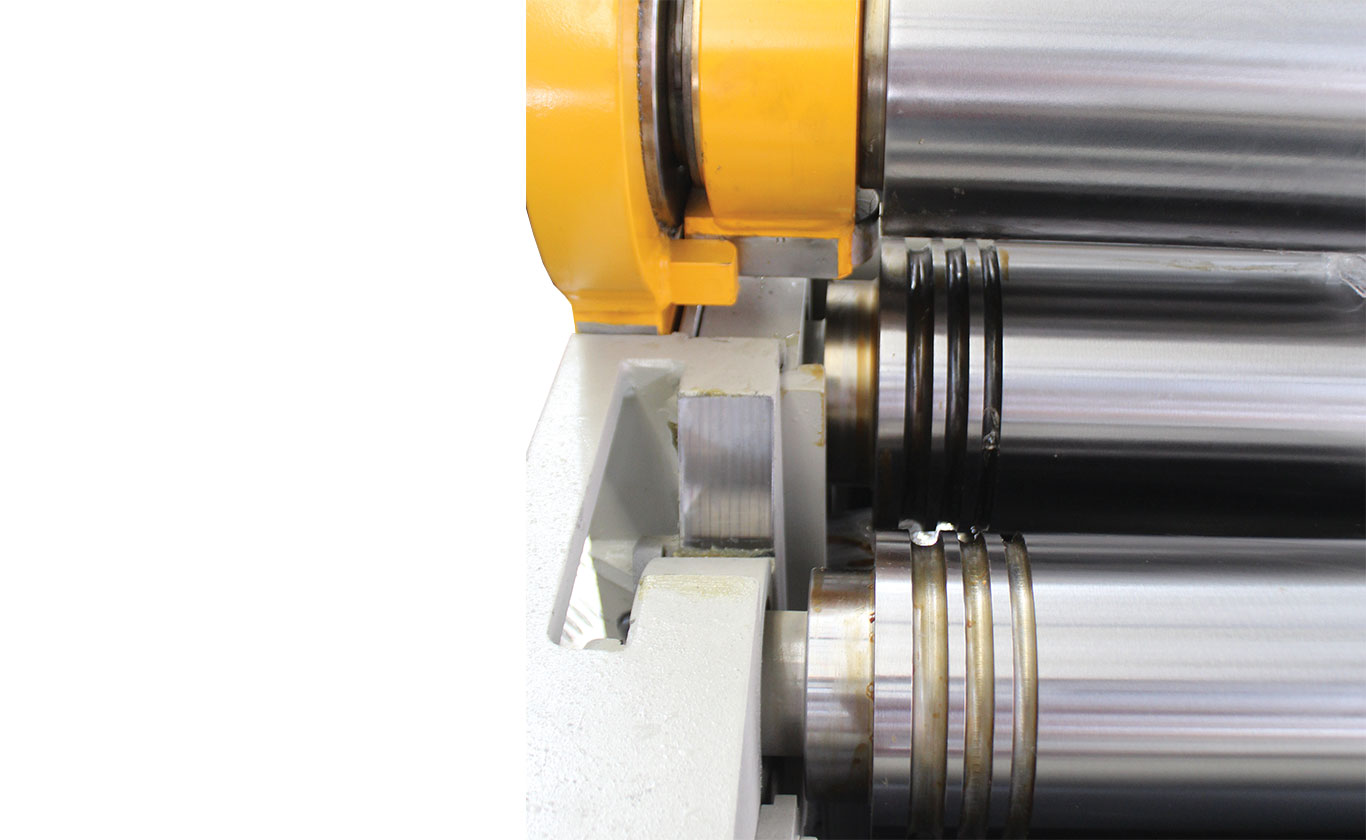

Wire grooves on roll ends
NC Control
Double Speed working
Adjustable Stepless Speed
Hydromotor Option

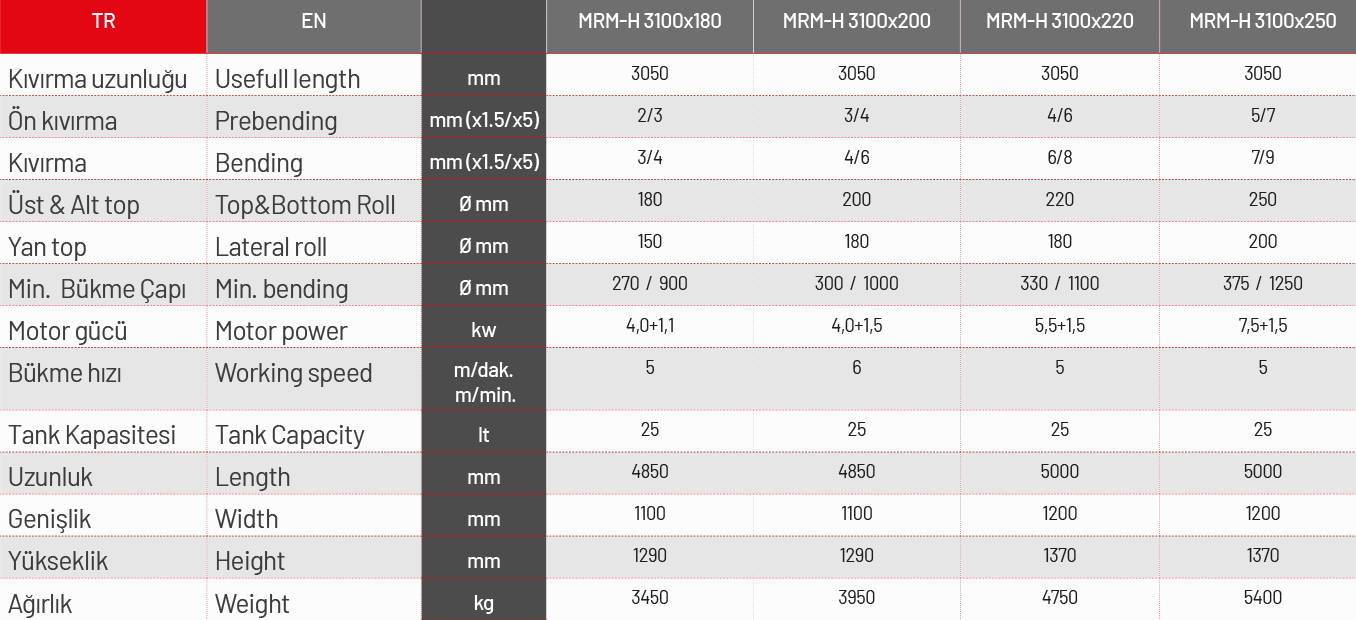

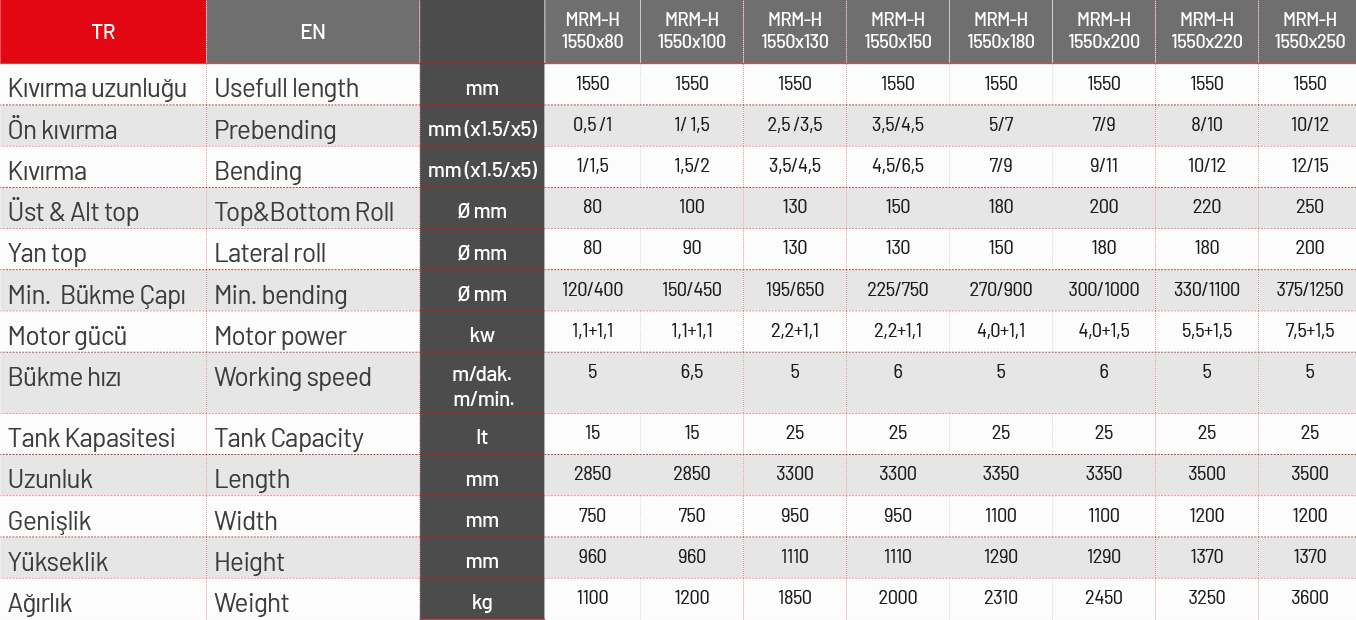

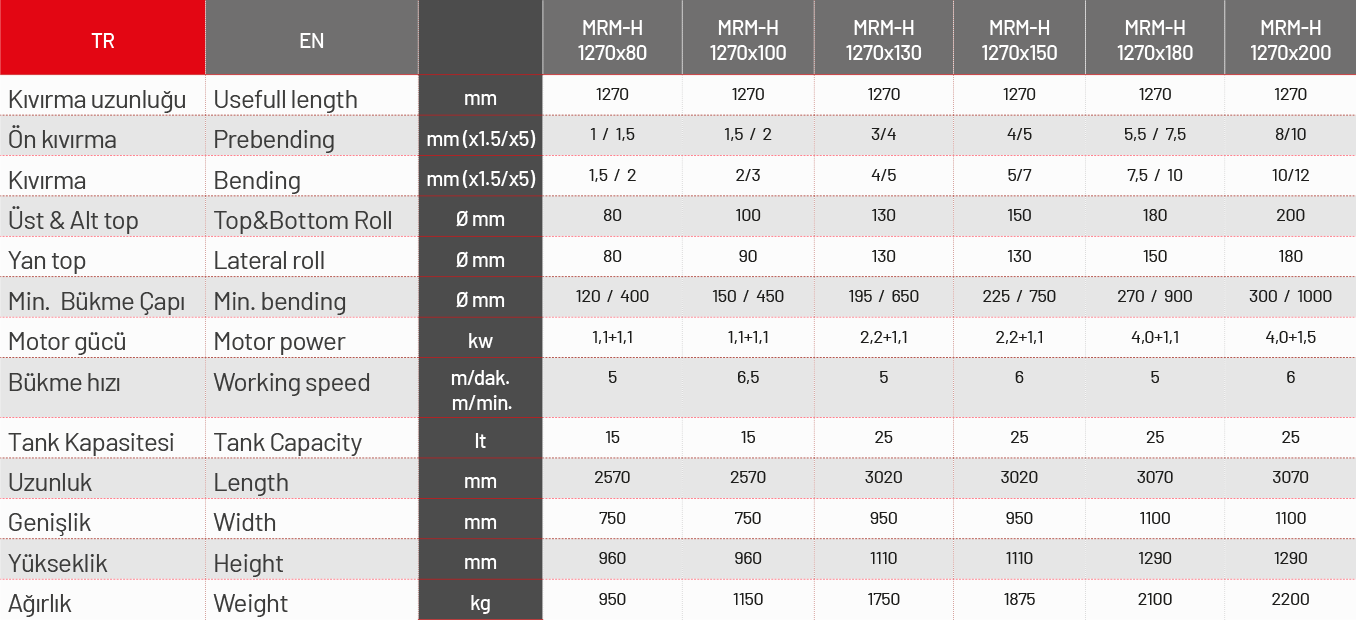

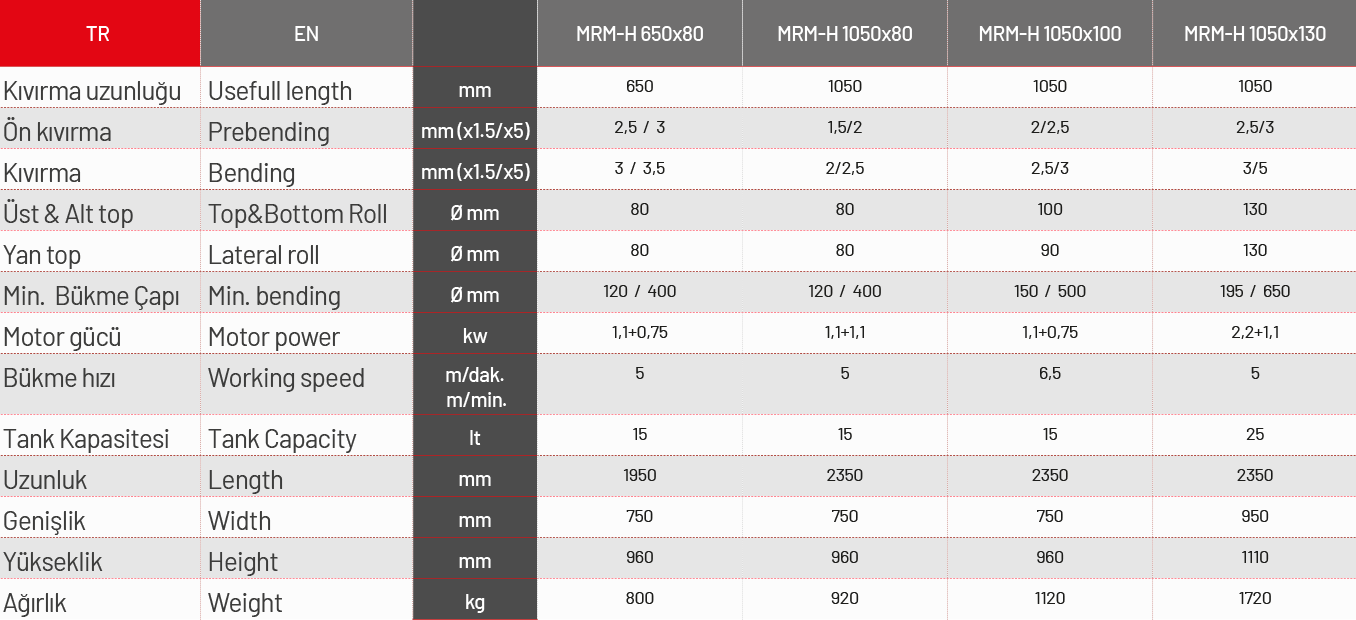

Teknik Tablo

There is no video for this product yet.

There is no PDF for this product.
