SFB 90 NC-C / SERVO ROTATION NC CONTROLLED / CARRIER MANDREL PIPE BENDING MACHINE

Home / Products / NC Controlled with Carrier Pipe Bending Machines – SFB-NC/C Series / SFB 90 NC-C / SERVO ROTATION NC CONTROLLED / CARRIER MANDREL PIPE BENDING MACHINE

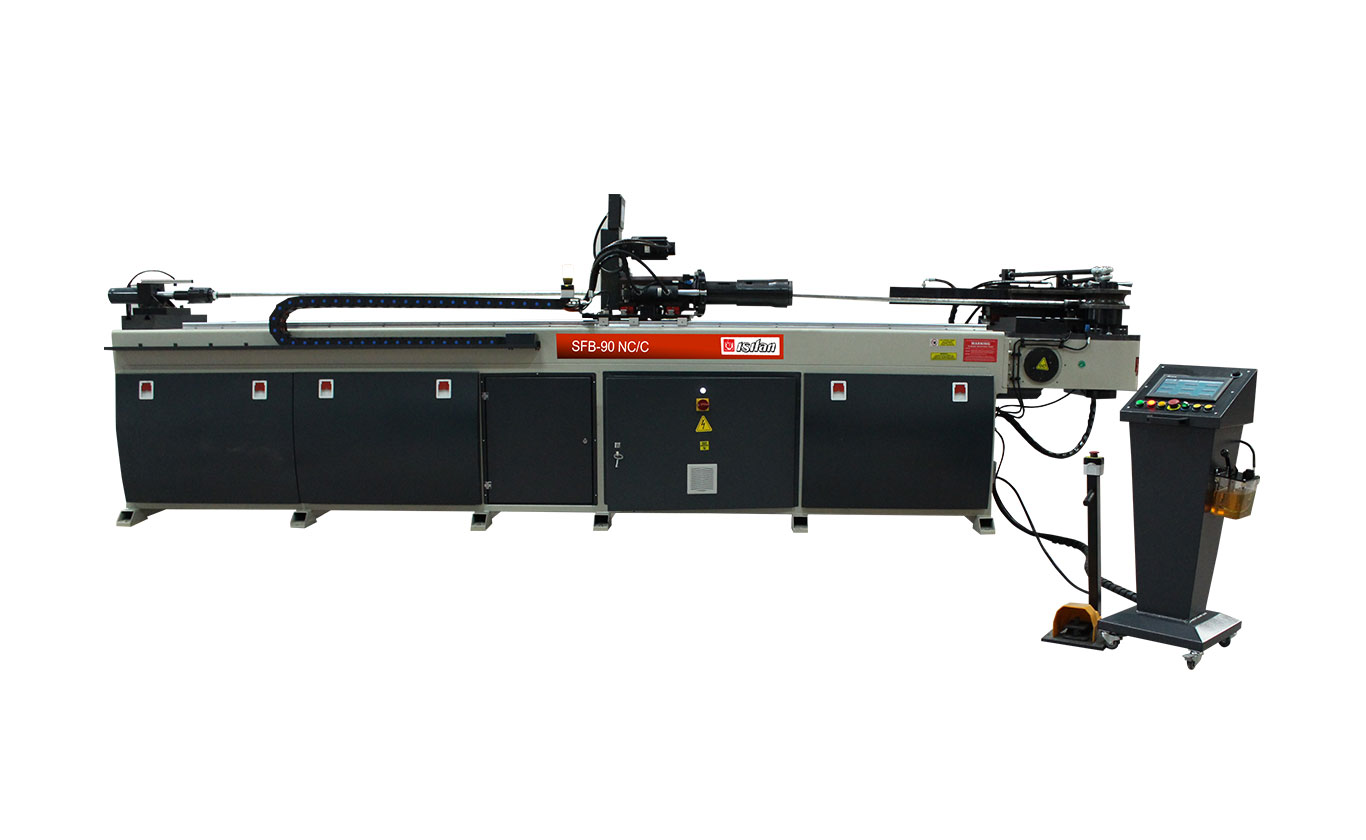

ISITAN-SFB90-NC-C

ISITAN-SFB51-NC-C-NUMUNE2

ISITAN-SFB51-NC-C-NUMUNE1

Sample photo

SFB 90 NC-C / SERVO ROTATION NC CONTROLLED / CARRIER MANDREL PIPE BENDING MACHINE

StandartdFeatures
Optional Features
Technical Table
Product Video
Product Catalog

Standard Features

1 Set Die (requested size)
NC Carrier
Servo Motorized Rotation (B Axis)
Hydraulic Collet
Manual Feeding (Y Axis)
Screen On Carrier
5 Hydraulic Piston
Hydraulic Slider Support
Hydraulic Clamping
Hydraulic Mandrel
Hydraulic Support
Hydraulic Collet
NC Control Unit
10” Touchscreen
Mobile Control Panel
100 Programm Memory
Each programm with squential 20 bending steps
Totally Working Status Reports
Error and Warning Messages
Mobile Foot Pedal with Emergency Stop Button
Electric Motorized Bending Axis with Reducer (C Axis)
Enable to work with mandrel or without mandrel
Brake Motor for precise bendings
Bending Angle with Encoder
Gauge Distance Stopers
Safety Plate on back of bending head
Overload Protection
Electric – 380V/3Ph/50Hz
CE Certificated

Optional Features

Extra Die Sets
Automatic Mandrel Lubrication System
Extra Mandrel Length (Up to 6 meters)
Flexiable Mandrel
Wiper
Motorized Feeding (Y Axis)

Teknik Tablo

There is no video for this product yet.

There is no PDF for this product.
