SFB 38 NC / NC CONTROLLED PIPE BENDING MACHINE WITH MANDREL (STANDARD)

Home / Products / NC Pipe Bending Machines - SFB-NC Series / SFB 38 NC / NC CONTROLLED PIPE BENDING MACHINE WITH MANDREL (STANDARD)

ISITAN-SFB-38NC-STANDART

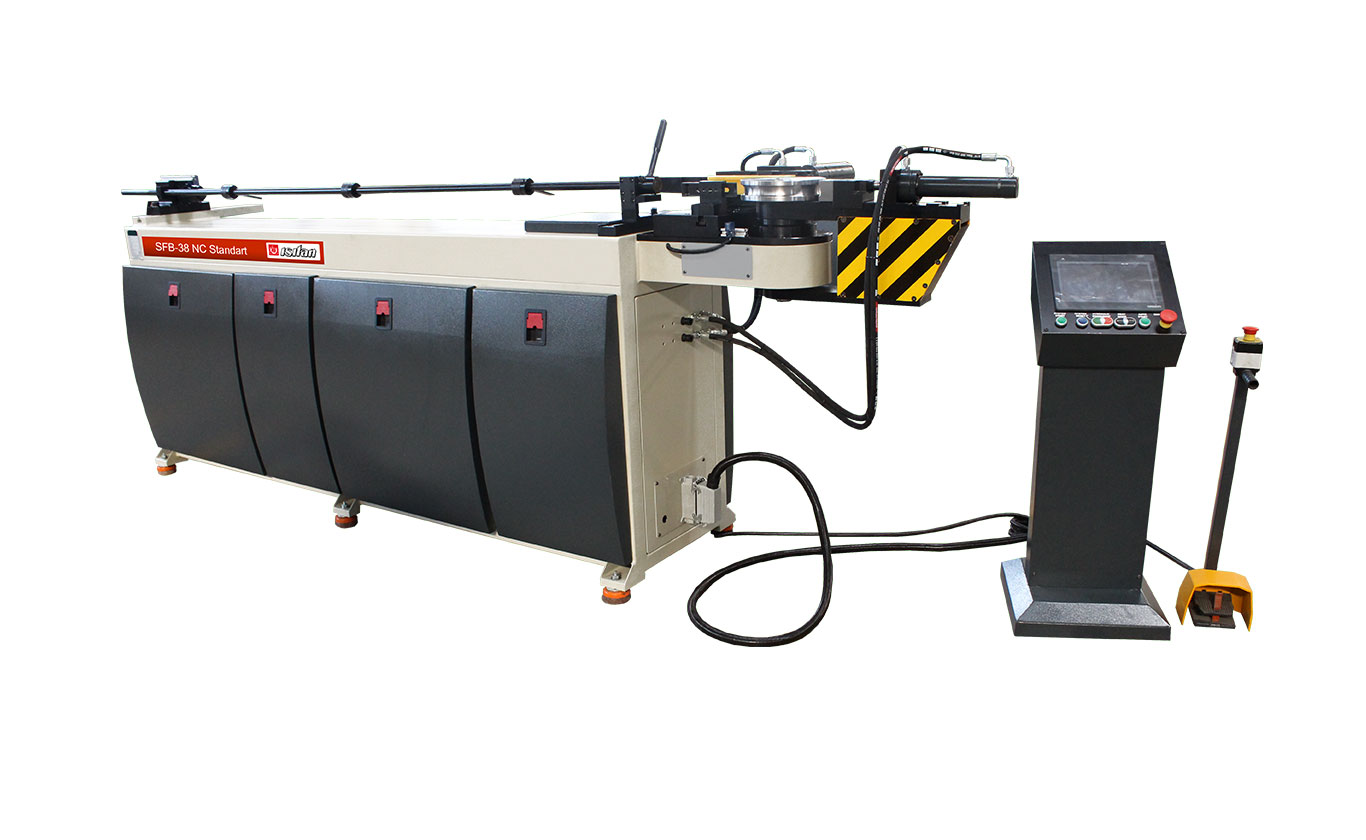

Sample photo

SFB 38 NC / NC CONTROLLED PIPE BENDING MACHINE WITH MANDREL (STANDARD)

StandartdFeatures
Optional Features
Technical Table
Product Video
Product Catalog

Standard Features

1 Set Die in requested size
NC Control Unit
10” TFT Touchscreen
Electric Motorized Bending with Reducer
100 Programm Memory
Each programm with 20 sequential bending steps
Totally Working Status Reports
Error and Warning Messages
Mobile Foot Pedal with Emergency Stop Button
Gauge Distance Bracket
Enable to work with mandrel or without mandrel
Safety Plate on bending head
Bending Angle with Encoder
Brake Motor for precise bendings
4 Hydraulic Piston
Hydraulic Support Slider System
Hydraulic Clamping
Hydraulic Mandrel
Hydraulic Support
Electrical Panel Safety Lock and Panel Lock with key
Electric – 380V/3Ph/50Hz
Overload Protection

Optional Features

Extra Die Sets in requested size
Manuel Carrier (for 38 and 51)
Mandrel Lubrication System
Extra Mandrel Length (Up to 6 meters)
Flexiable Mandrel
Wiper

Teknik Tablo

There is no video for this product yet.

There is no PDF for this product.
