Bending system with Double Cylinder on the upper table.
Static and dynamic rigidity provided, strong construction with steel frame and upper table material.
Upper table movement supported by easily adjustable fiber slide bearings.
Durable balancing spindle and eccentric bearings that aid parallelism.
Stroke controlled angle adjustment mechanism with mechanical-stop system and motor control.
High stroke and front opening values that facilitate the use of different bending molds.

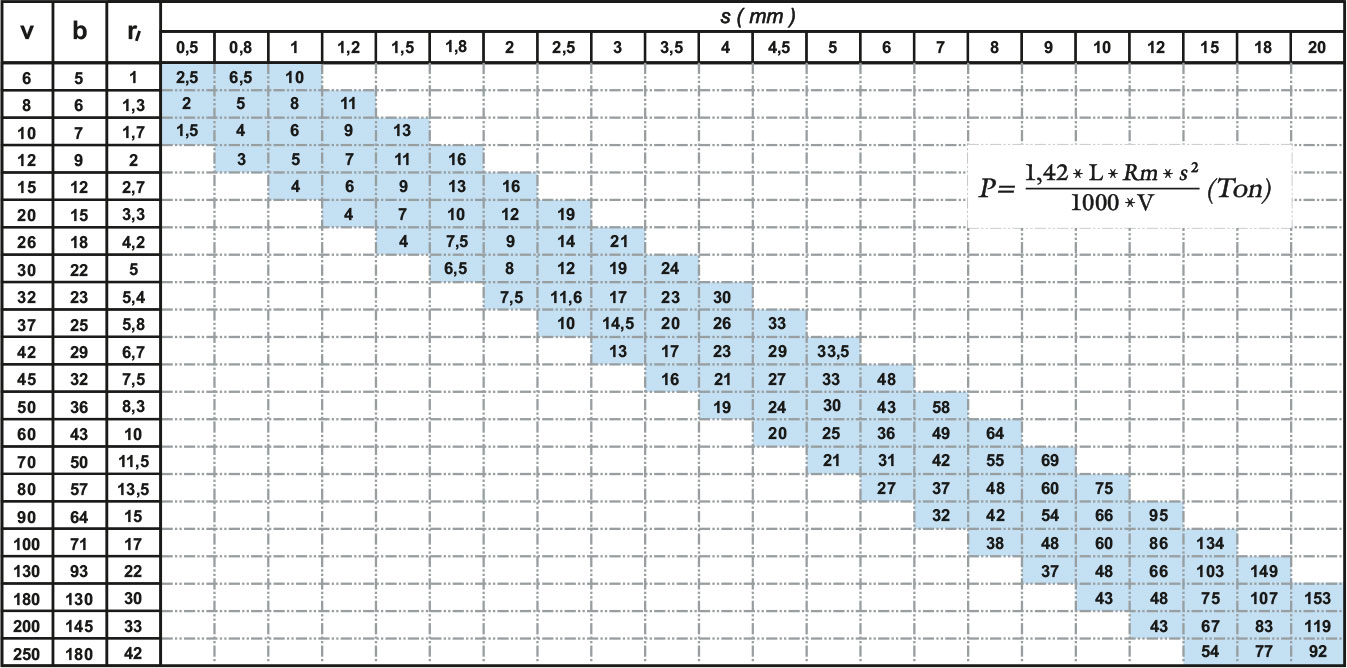

Easy tonnage adjustment with pressure switch and stop at lower stroke point via NC control.
Hydraulic safety system against excessive pressure rise.
Double speed working system: free fall, slow bend and fast return.
Safety enabled foot pedal with emergency stop connected to the NC Controller, enables safe work environment and compatible with CE

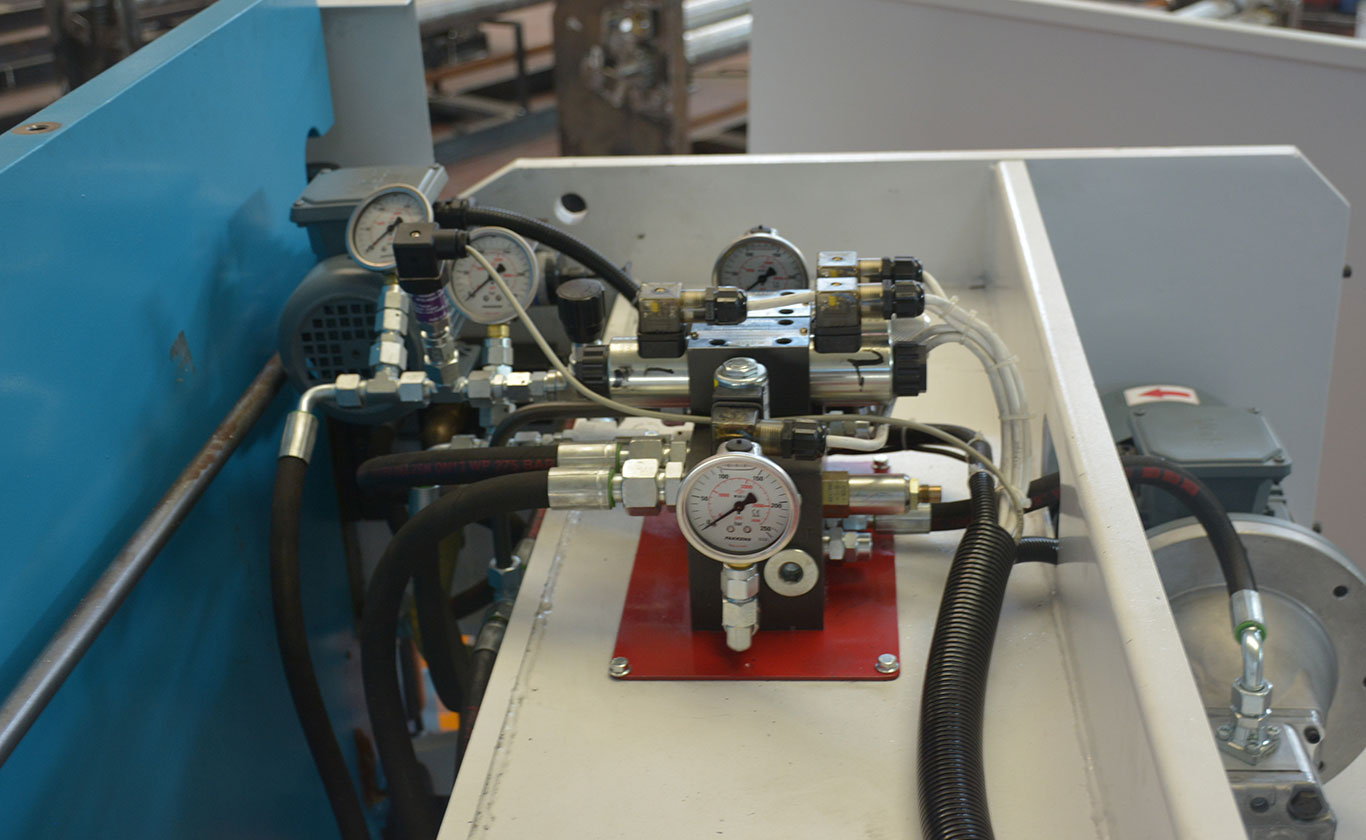

Compact, low maintenance needed HAWE or REXROTH hydraulic system unit located at the top of the machine.

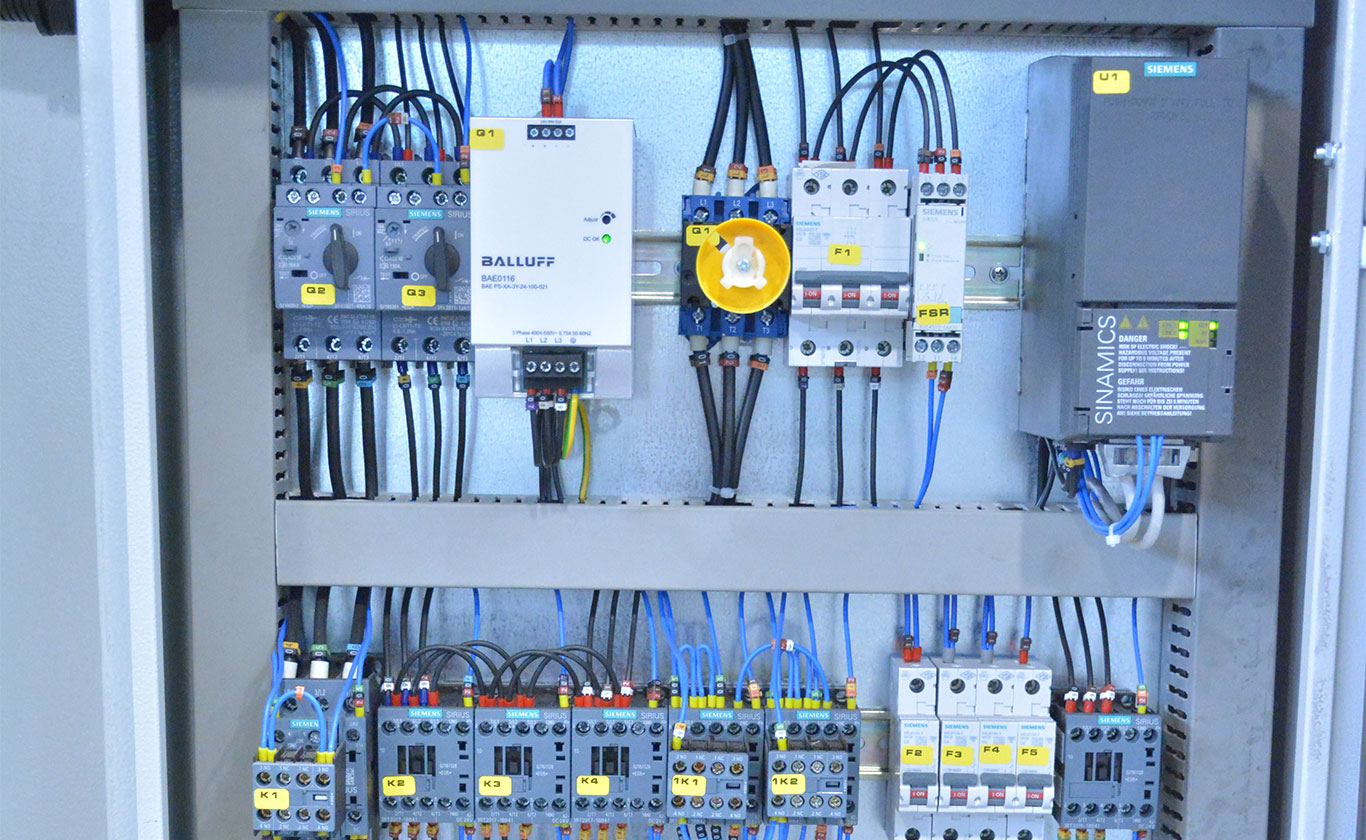

Service solution with remote connection with European origin SIEMENS and PIZZATO, BALLUF electrical equipments.

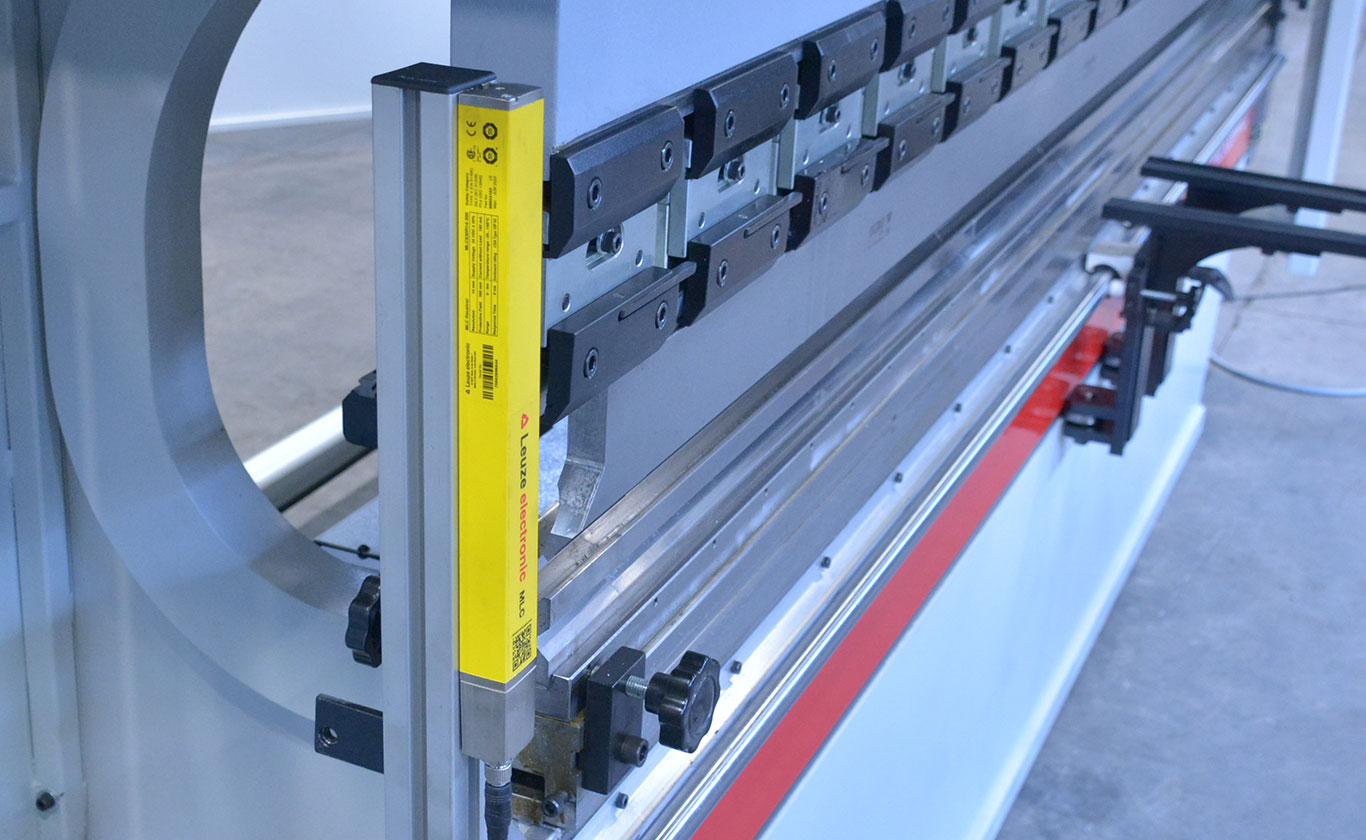

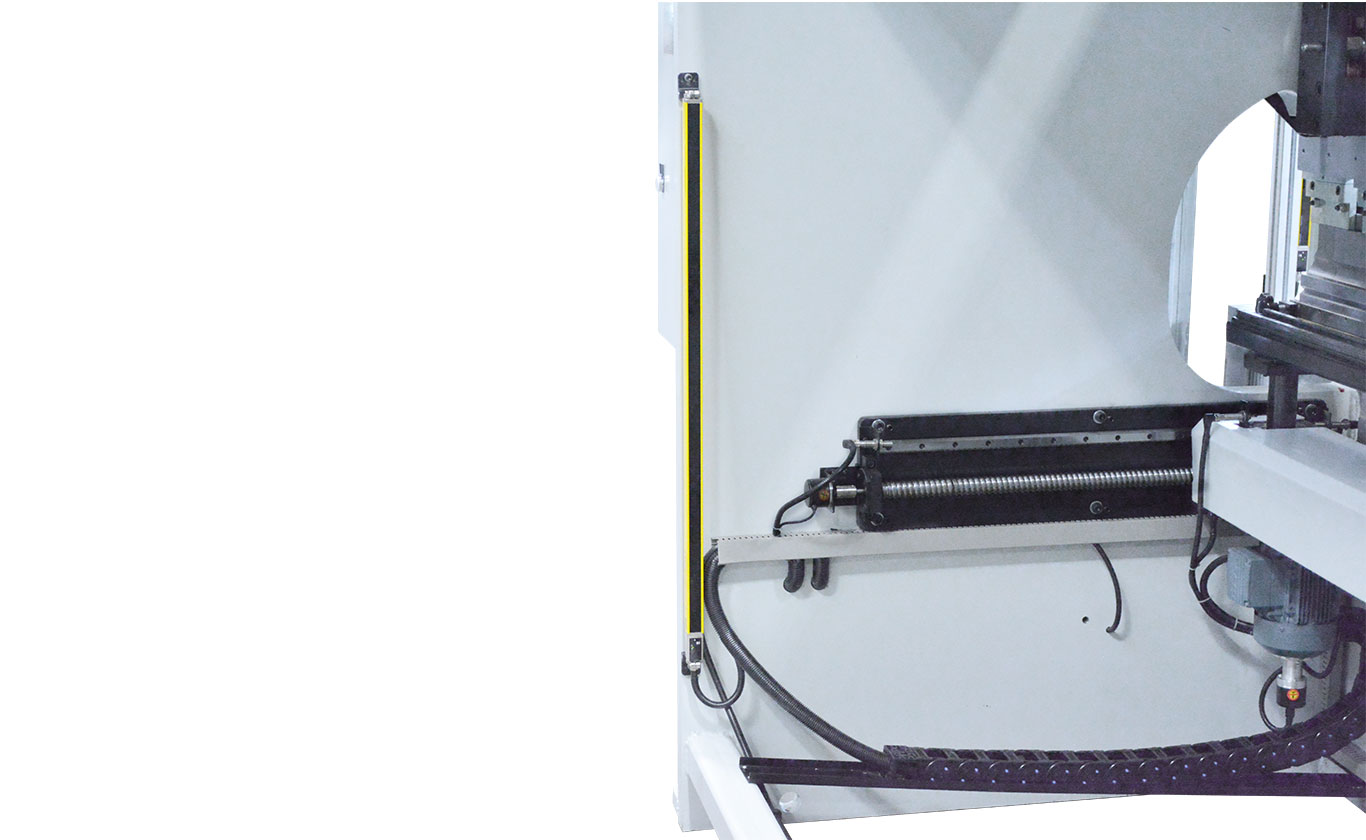

LEUZE brand security system, in the front area enables different forms with learning mode.

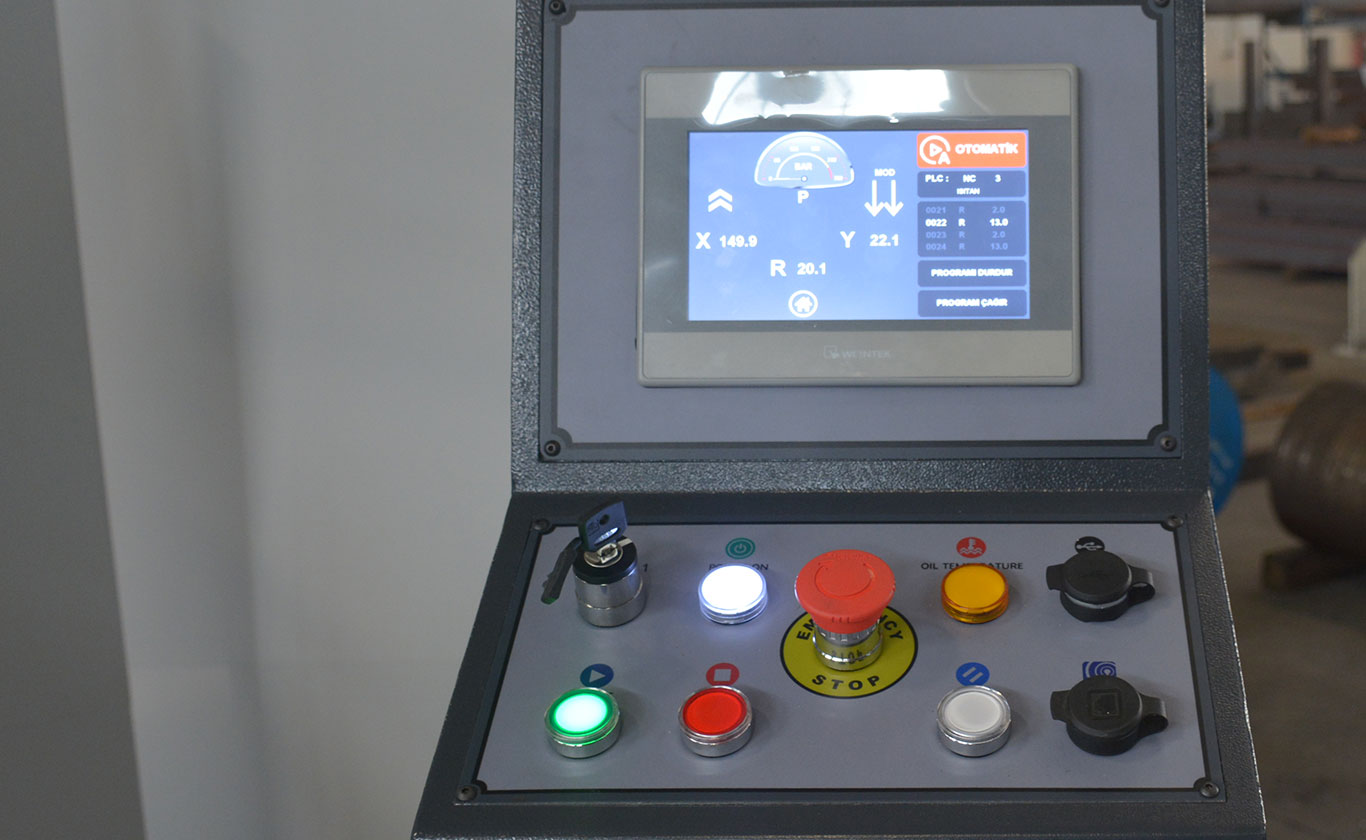

NC control unit, which can write standard 500 programs / 200 lines in each, And easy save and load programs from USB.

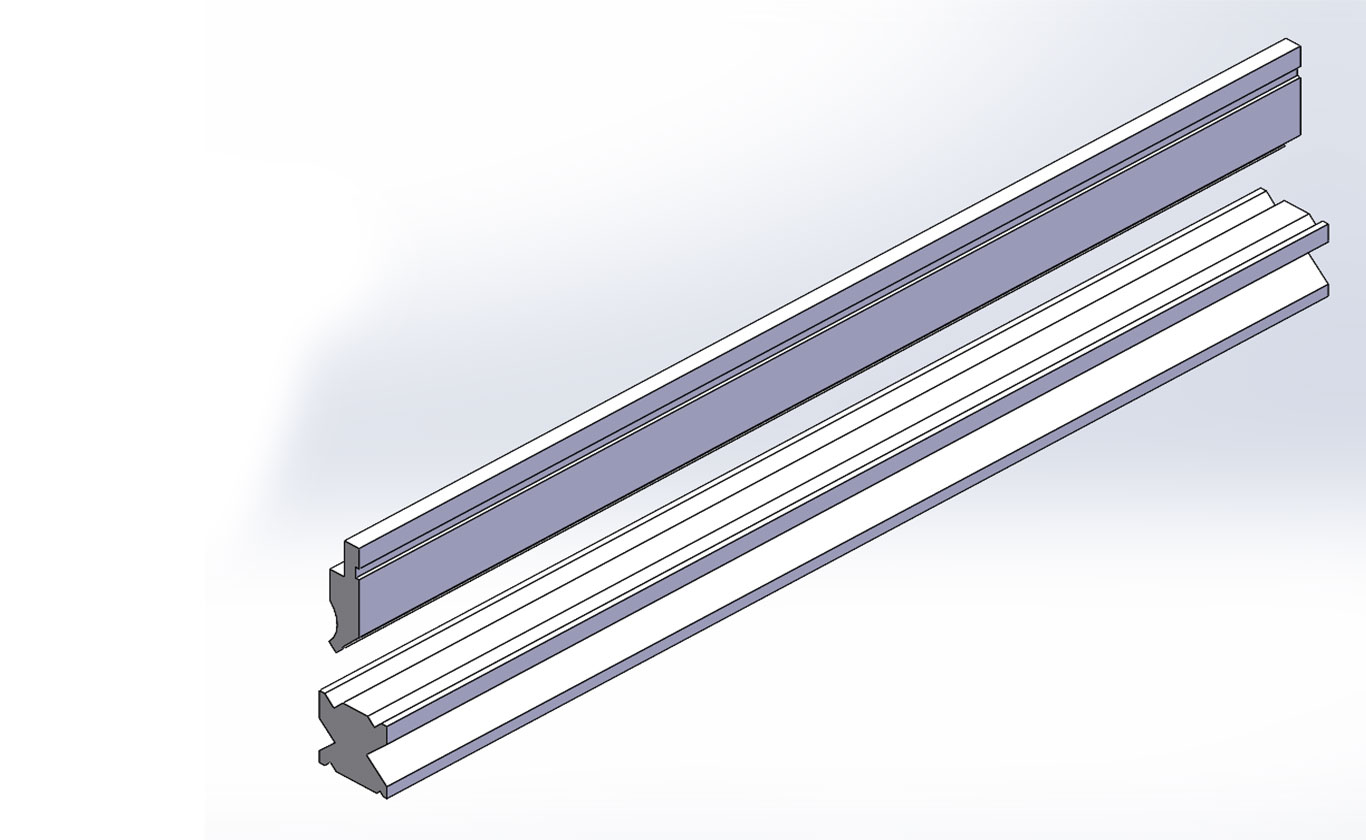

Standard upper and lower molds.

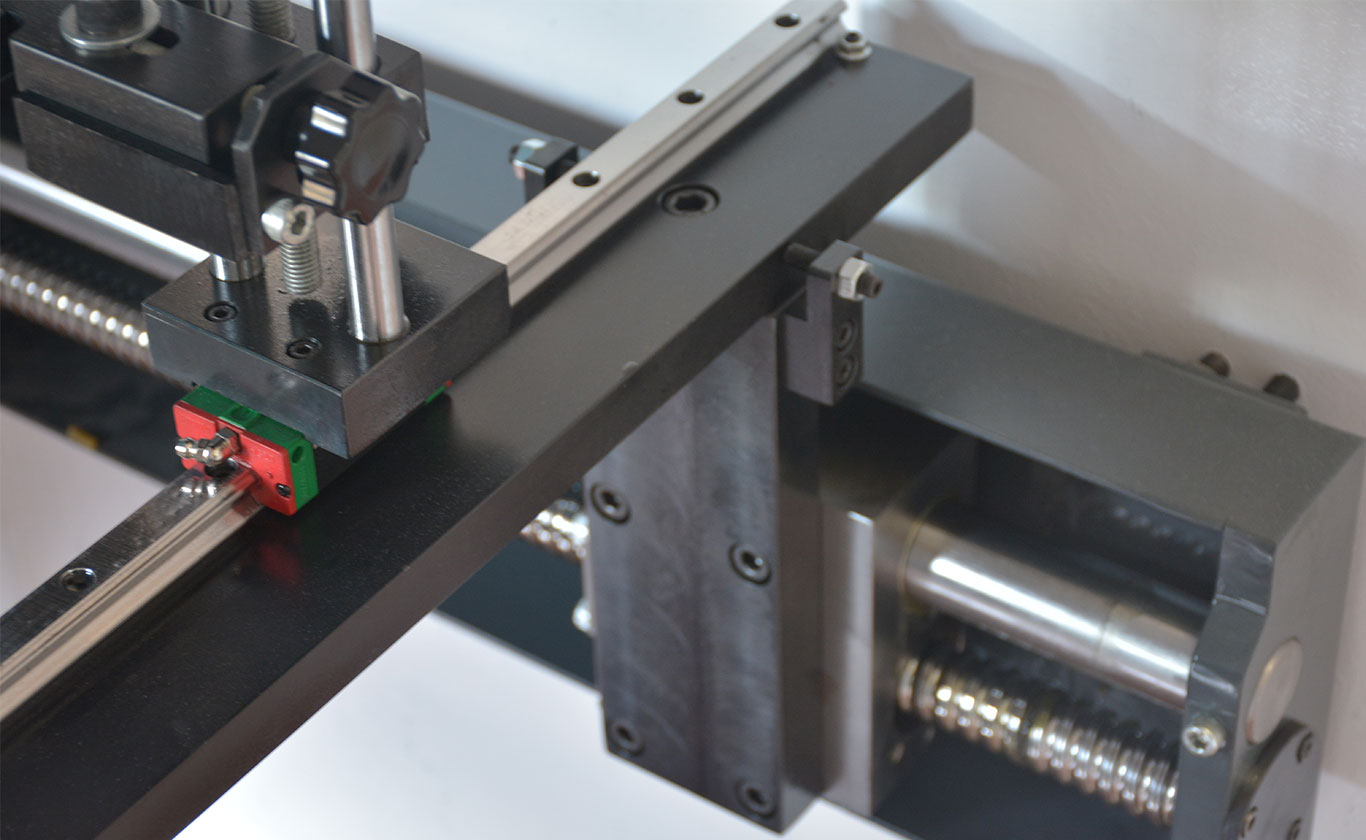

Motorized X back gauge with high speed and programmed via NC control supported with linear guideways: 500 mm gauge distance and 0.2 mm operating precision,

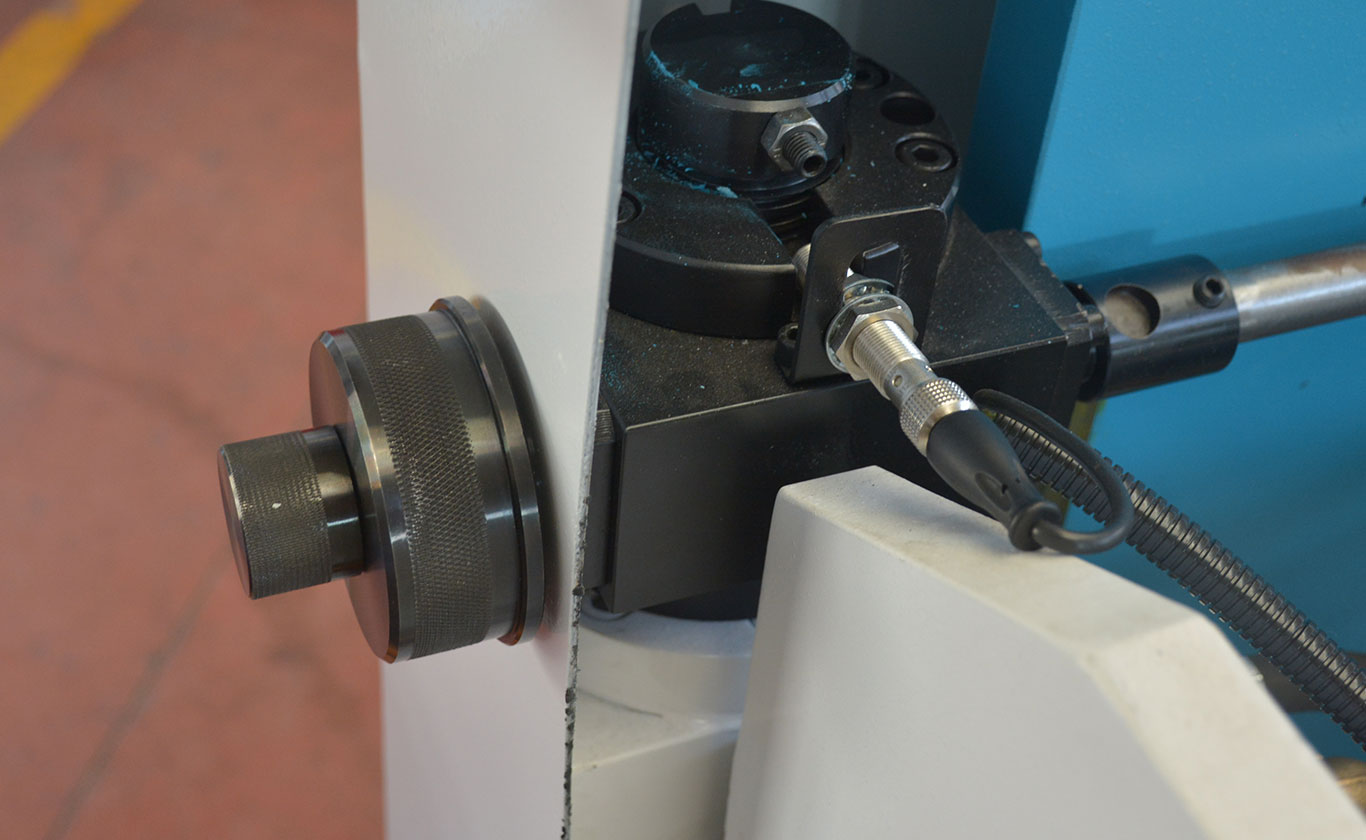

Y AXIS Angle Setting by Motor and NC Controller available
Easily floating arm control panel.
Front support arms that can be easily moved with linear slide and bearing systems.

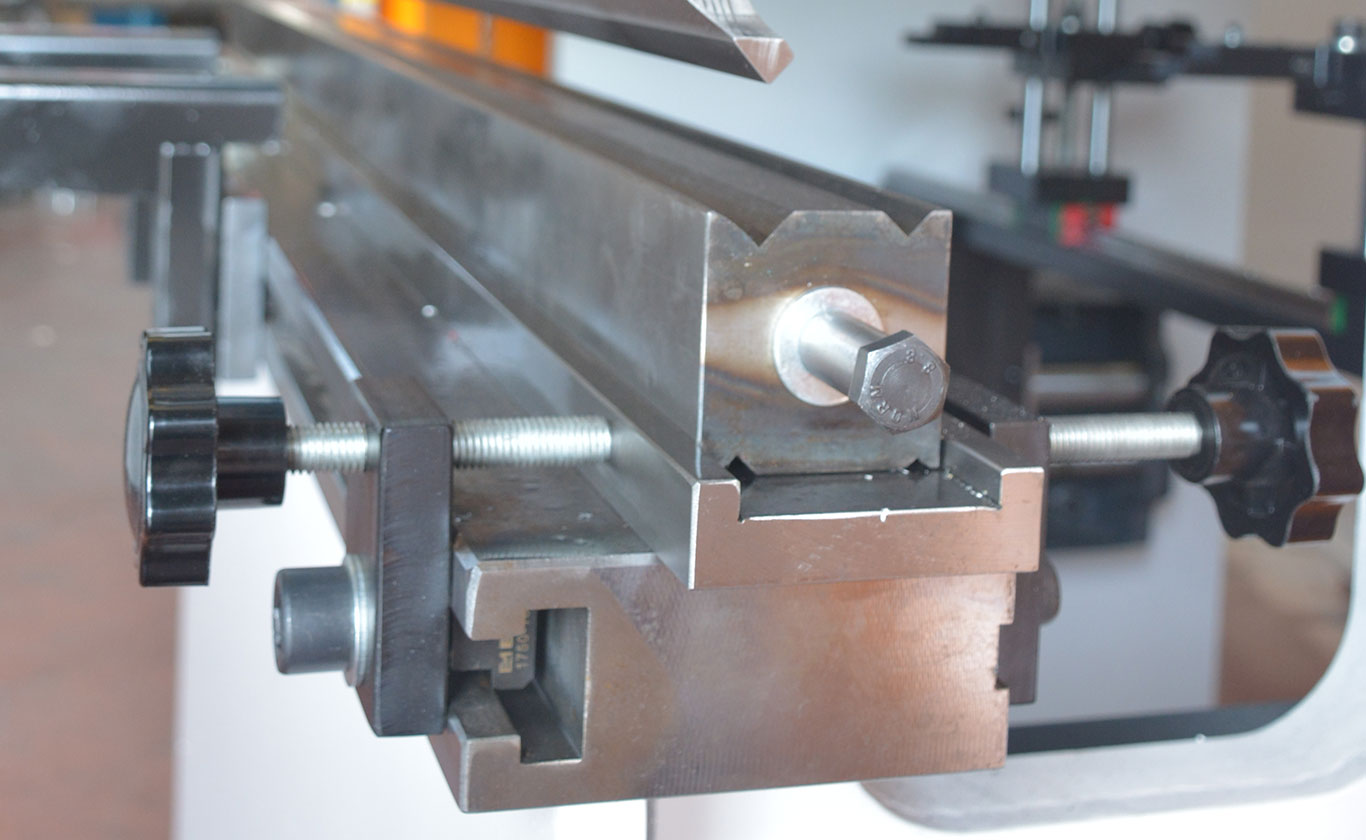

Tightening and fixing bolts to center the bottom die
Sensetive prgrammable retreat function on Backgauge to avoid collision
Optional Features
Motorized R-axis with precision movement
Special bending dies.
Special pedal system with two hand and foot control.
