EB-2160 / 2 (X+Y) AXIS NC CONTROLLED HYDRAULIC PRESSBRAKES

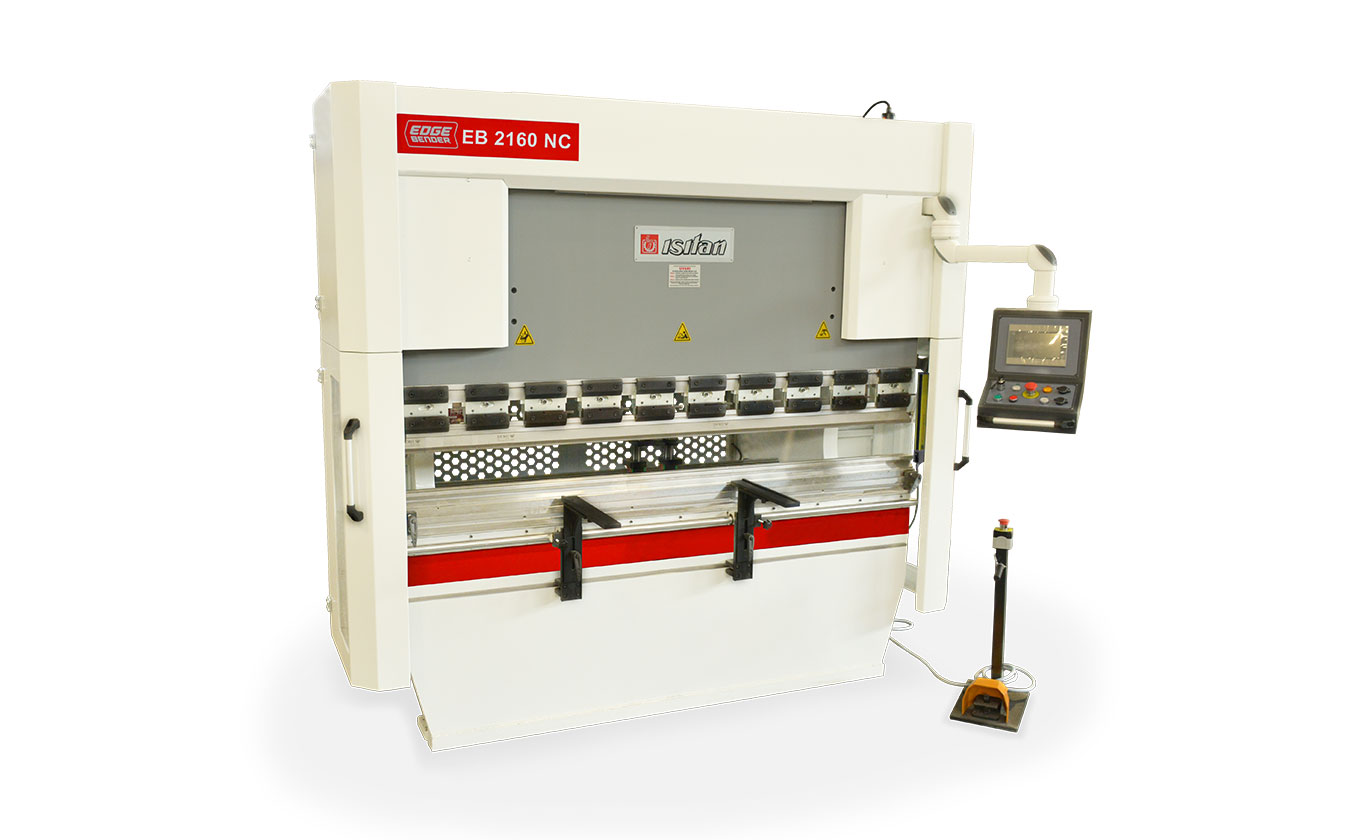

Sample photo

EB-2160 / 2 (X+Y) AXIS NC CONTROLLED HYDRAULIC PRESSBRAKES

Standard Features

  • Bending system with Double Cylinder on the upper table.
  • Static and dynamic rigidity provided, strong construction with steel frame and upper table material.
  • Upper table movement supported by easily adjustable fiber slide bearings.
  • Durable balancing spindle and eccentric bearings that aid parallelism.
  • Stroke controlled angle adjustment mechanism with mechanical-stop system and motor control.
  • High stroke and front opening values that facilitate the use of different bending molds.
  • Easy tonnage adjustment with pressure switch and stop at lower stroke point via NC control.
  • Hydraulic safety system against excessive pressure rise.
  • Double speed working system: free fall, slow bend and fast return.
  • Safety enabled foot pedal with emergency stop connected to the NC Controller, enables safe work environment and compatible with CE
  • Compact, low maintenance needed HAWE or REXROTH hydraulic system unit located at the top of the machine.
  • Service solution with remote connection with European origin SIEMENS and PIZZATO, BALLUF electrical equipments.

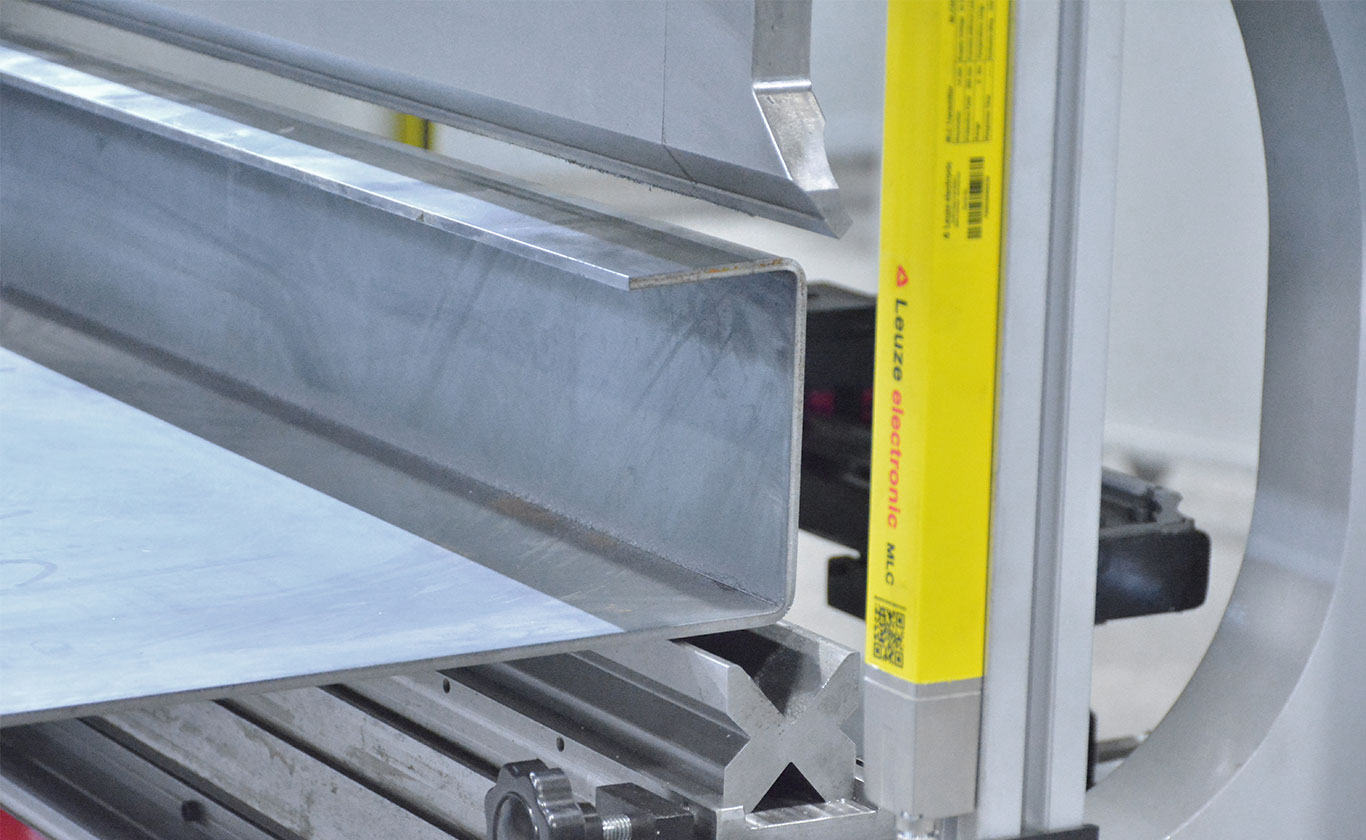

  • LEUZE brand security system, in the front area enables different forms with learning mode.
  • NC control unit, which can write standard 500 programs / 200 lines in each, And easy save and load programs from USB.
  • Motorized X back gauge with high speed and programmed via NC control supported with linear guideways: 600 mm gauge distance and 0.2 mm operating precision,
  • Y AXIS Angle Setting by Motor and NC Controller availabl
  • Quick-release PROMECAM upper Die clamping system for partial and quick disassembly. Manual crowning system which can be adjusted with the help of wedge from the upper die holders.
  • Easily floating arm control panel.
  • Front support arms that can be easily moved with linear slide and bearing systems.
  • Tightening and fixing bolts to center the bottom die
  • Sensetive prgrammable retreat function on Backgauge to avoid collision

Optional Features

  • Motorized R-axis with precision movement
  • Special bending dies.
  • Special pedal system with two hand and foot control.
  • Special safety systems. (DSP, FIESSLER)
  • Additional length in backgauge.
  • Extra back gauge duck.
  • Extra front support arm.
  • Manual or Motorized Cambering on Lower Blade
