4R HMS 2550 / HYDRAULIC 4 ROLLS PLATE BENDING MACHINES

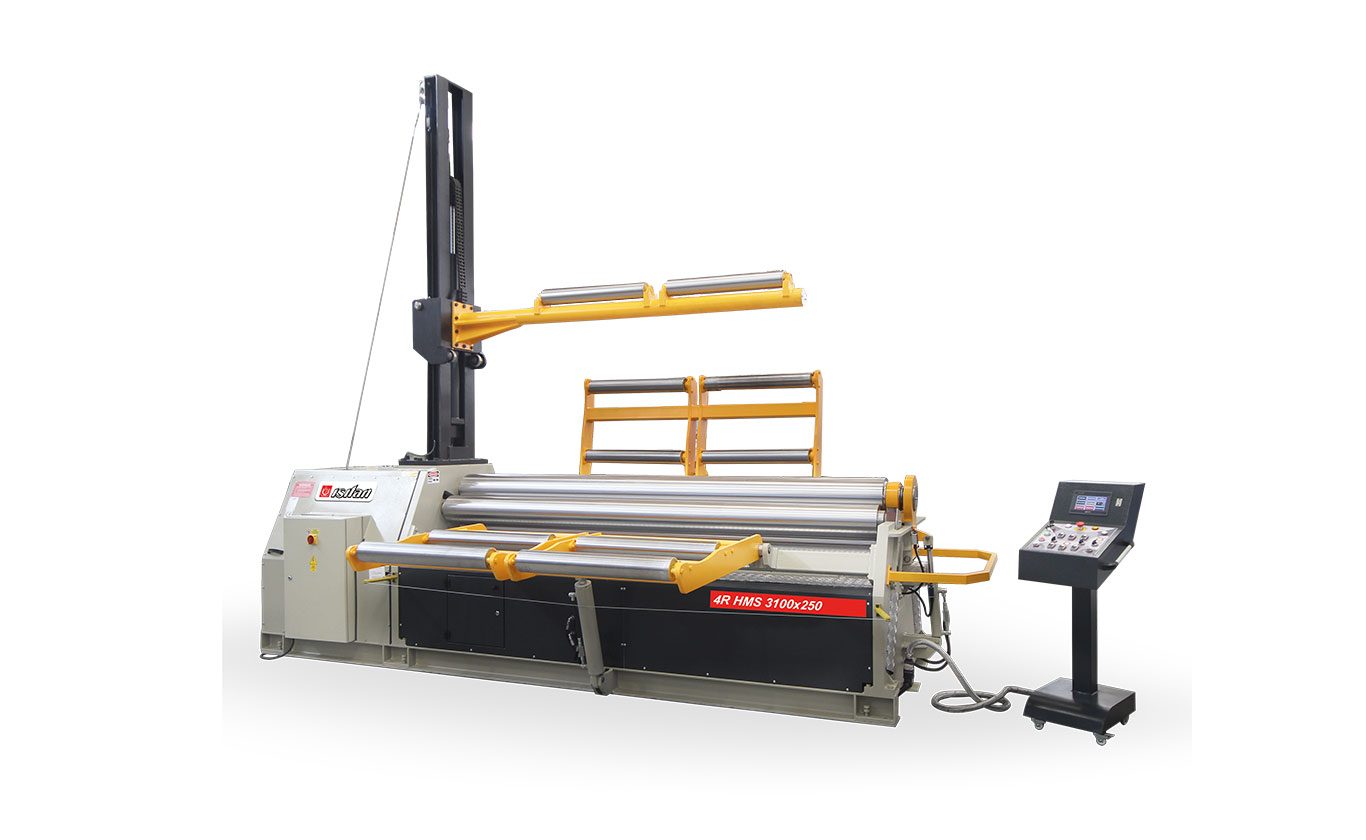

Sample photo

4R HMS 2550 / HYDRAULIC 4 ROLLS PLATE BENDING MACHINES

Standard Features

  • Very suitable for light and medium plates,aluminum or stainless steel
  • Ferrules in full circle or varying radiuses can be done easily
  • Pinch Roll and Lateral Rolls move with pyramid linear direct movement by hydraulic pistons.
  • Overload Protection
  • Top roll is powered by electrical and planetary gearbox. Bottom roll powered with cardan joint system.
  • Three digital readouts for easy roll positioning
  • Hydraulic DropEnd for easy removal of finished ferrule
  • Easy operation with Mobile Control Panel
  • Welded Steel frames
  • Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
  • Conical Bending device
  • Hydraulic balancing system
  • Built according to EC Safety Directives and has CE Mark
  • User’s manual

Optional Features

  • Remote assistance over the NC controller
  • Overhead Crane for large diameters
  • Hydraulic Lateral Side Supports for large diameters
  • Ground and polished rolls
  • Double speed system
  • Infinitively Variable Speed
  • Hydromotor for rotation
  • Ejector system

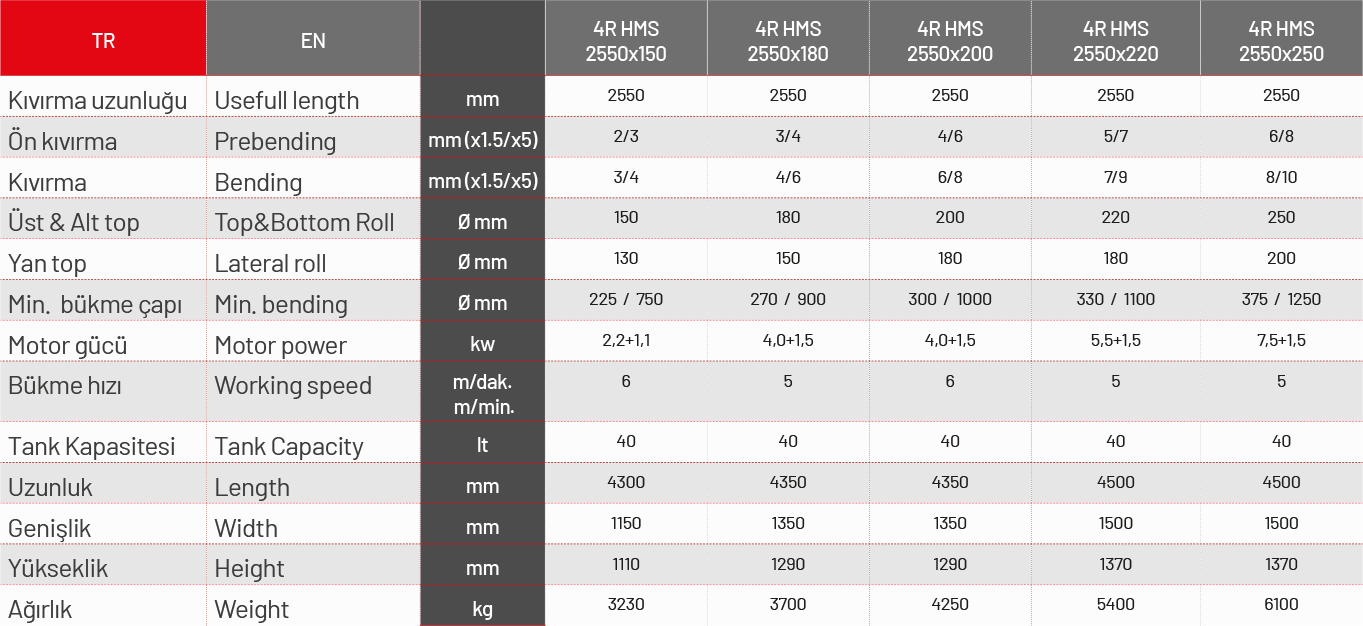

Teknik Tablo
